AC 3.5kW Portable Charger

The main product line includes portable chargers,Ac charging station and Dc charging stations. Certificates include CQC, Energy Star, CE, UL and FCC. The products are sold to many countries and meet the standards of China, Europe and the United States.

Enquiry

Contact

Product Description

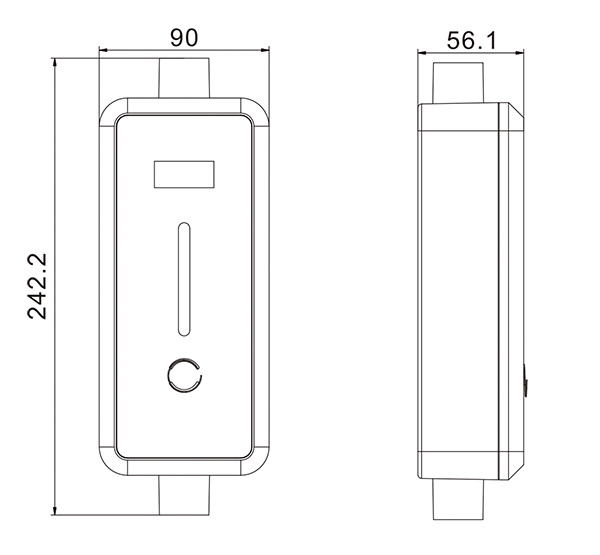

Dimensions in mm

Electrical properties
Charging capacity		3.5 kW
Charge mode		Mode 2 (IEC 61851-1)
Number of connectors		1
Connector type		Type 1(SAEJ1772), Type 2(IEC 62196-2), NACS
Fixed cable length		5m
Connection capacity		1-phase, 16 A, 50-60 Hz, 220-240V AC
Metering		Power consumption measured on chip
Safety and certification
Ground fault detection		6 mA DC CCID
Housing fire ratings		UL94V-0
Storage temperature		-35℃ to +60℃
Operating temperature		-20℃ to+50℃
Operating humidity		Max.95% non-condensing
Enclosure ratings		IP55
Certified		CE
Compliance		IEC 61851-1, IEC 61851-21-2
Connectivity &Installation
Authorization		Autostart
Status indication/HMI		LED ring
Physical properties
Housing		ABS+PC
Packing size(WxHxD)		335×315×120mm
Gross weight		2.65kg
Net weight		1.9 kg
Mounting		Portability
Standard colors		Misty Black

Note:

NECS charging stations can charge at 16 A; however, actual charging capacity is dependent on local environmental conditions and internal temperature build up.

Copyright NECS^® and the NECS logo are registered trademarks. All rights reserved. NECS has compiled this document to the best of its knowledge but does not warrant that all information provided is error-free; NECS does not accept liability in that respect.All specifications are approximates only. The limited warranty conditions are stated in the applicable NECS general terms and conditions.
