AC 44kW Charging Station

The main product line includes portable chargers,Ac charging station and Dc charging stations. Certificates include CQC, Energy Star, CE, UL and FCC. The products are sold to many countries and meet the standards of China, Europe and the United States.

Enquiry

Contact

Product Description

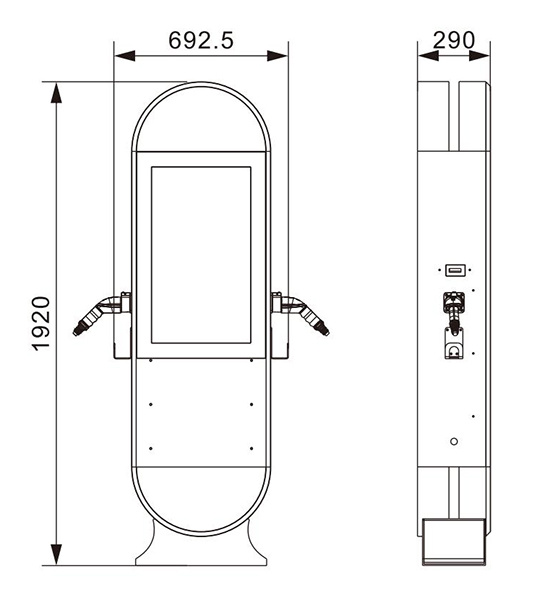

Dimensions in mm

Electrical properties
Charging capacity		44 kW
Charge mode		Mode 3(IEC61851-1)
Number of connectors		2
Connector type		Type 2(IEC 62196-2)
Fixed cable length		5m
Connection capacity		3-phase, 400 VAC, 3 2A*2, 50-60Hz
Metering		Optional MID Meter
Safety and certification
Ground fault detection		6 mA DC CCID
Housing fire ratings		UL94V-0
Storage temperature		-35℃ to +60℃
Operating temperature		-20℃ to +50℃
Operating humidity		Max.95%non-condensing
Enclosure ratings		IP54
Certified		CE
Compliance		IEC 61851-1, IEC 61851-21-2, CSA C22.2 NO.280-13
Connectivity & Installation
Authorization		(Optional)Autostart / Password / RFID card
Status indication/HMI		32-inch Advertising Screen and 7-inch Touch Screen
WLAN communication		Wi-Fi / Bluetooth 4.0
Cellular communication		(optional) 4G
External serial communication		RS485 interface for dynamic load balancing and solar integration (also scheduled charging if supported via the backend)
Charging protocol-Hub		(Optional) OCPP 1.6
Maximum installation height		+2000 m above sea level
Physical properties
Housing		Sheet Metal
Packing size(WxHxD)		2000×780×600 mm
Gross weight		120 kg
Net weight		105 kg
Mounting		Floor Mounted
Standard colors		Polar White

Note:

NECS charging stations can charge at 32 A; however, actual charging capacity is dependent on local environmental conditions and internal temperature build up.

Copyright NECS^® and the NECS logo are registered trademarks. All rights reserved. NECS has compiled this document to the best of its knowledge but does not warrant that all information provided is error-free; NECS does not accept liability in that respect.All specifications are approximates only. The limited warranty conditions are stated in the applicable NECS general terms and conditions.
