DC 20/30/40kW Charging Station

The main product line includes portable chargers,Ac charging station and Dc charging stations. Certificates include CQC, Energy Star, CE, UL and FCC. The products are sold to many countries and meet the standards of China, Europe and the United States.

Enquiry

Contact

Product Description

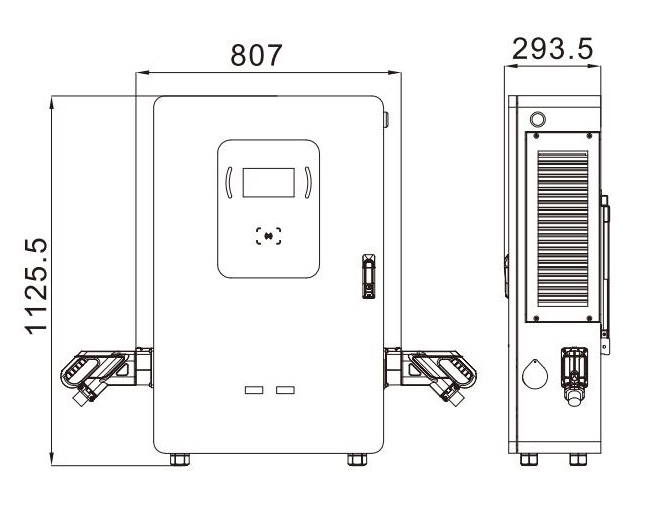

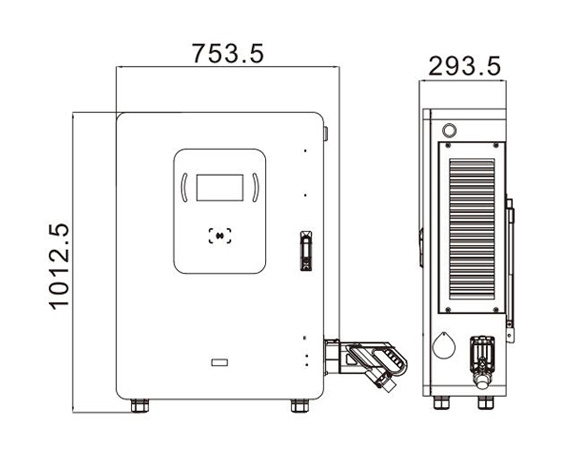

Dimensions in mm

Electrical properties
Charging capacity	20/30/40 kW
Charge mode	Mode 4 (IEC61851-1), UL2202 Level3
Number of connectors	1/2
Connector type	CCS1/CCS2
Fixed cable length	5m
Connection capacity	3-phase, 400/480 VAC, 75/100 A, 50-60 Hz
Metering	Optional MID Meter
Safety and certification
Ground fault detection	6 mA DC CCID
Housing fire ratings	UL94V-0
Storage temperature	-35℃ to +60℃
Operating temperature	-20℃ to +50℃
Operating humidity	Max.95% non-condensing
Enclosure ratings	IP54
Certified	CE/US
Compliance	UL2202, UL2231, FCC part15, CSA C22.2 NO.107.1, IEC 61851-1-23, IEC 61851-21-2
Connectivity & Installation
Authorization	(Optional) Autostart/Password/RFID card
Status indication/HMI	Optional 7/10 inch Touch Screen
WLAN communication	Wi-Fi / Bluetooth 4.0
Cellular communication	(Optional) 4G
External serial communication	RS485 interface for dynamic load balancing and solar integration (also scheduled charging if supported via the backend)
Charging protocol-Hub	(Optional) OCPP 1.6
Maximum installation height	+2000 m above sea level
Physical properties
Housing	Sheet Metal
Packing size(WxHxD)	988×721×379 mm
Gross weight	50 kg
Net weight	35kg
Mounting	Wall or pole
Standard colors	Metal Gray

Note:

NECS charging stations can charge at 100 A; however, actual charging capacity is dependent on local environmental conditions and internal temperature build up.

Copyright NECS^® and the NECS logo are registered trademarks. All rights reserved. NECS has compiled this document to the best of its knowledge but does not warrant that all information provided is error-free; NECS does not accept liability in that respect.All specifications are approximates only. The limited warranty conditions are stated in the applicable NECS general terms and conditions.
