AC7/9.6/11.5kW(32/40/48A) Charging Station

The main product line includes portable chargers,Ac charging station and Dc charging stations. Certificates include CQC, Energy Star, CE, UL and FCC. The products are sold to many countries and meet the standards of China, Europe and the United States.

Enquiry

Contact

Product Description

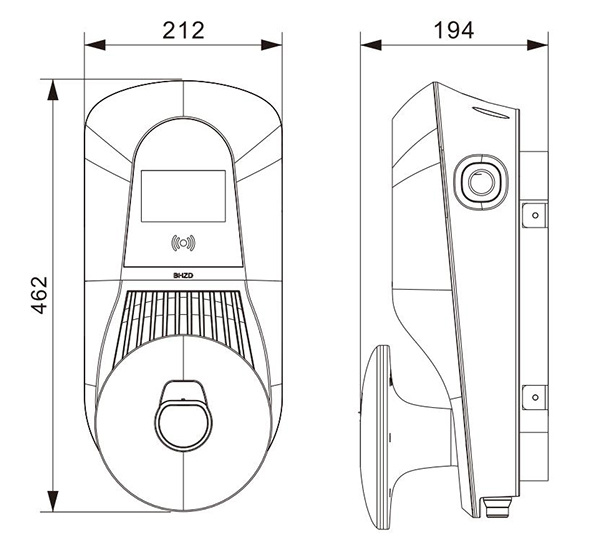

Dimensions in mm

Electrical properties
Charging capacity	7/9.6/11.5 kW(32/40/48 A)
Charge mode	LEVEL 2
Number of connectors	1
Connector type	Type 1(SAEJ1772),NACS
Fixed cable length	5m
Connection capacity	1-phase,176-264VAC,32/40/48 A,50-60 Hz
Metering	Power consumption measured on chip
Safety and certification
Ground fault detection	6 mA DC CCID
Housing fire ratings	UL94V-0
Storage temperature	-35℃ to +60℃
Operating temperature	-20℃ to+50℃
Operating humidity	Max.95%non-condensing
Enclosure ratings	IP55
Certified	UL/FCC/ENERGY STAR
Compliance	UL2231, UL2594, FCC part15, CSA C22.2 NO.280-13, ENERGY STAR
Connectivity & Installation
Authorization	(Optional) Autostart/RFID card
Status indication /HMI	4.3-inch Screen
WLAN communication	(Optional) Wi-Fi/Bluetooth 4.0
Cellular communication	(Optional) 4G
External serial communication	(Optional) RS485 interface for dynamic load balancing and solar integration(also scheduled charging if supported via the backend
Charging protocol-Hub	(Optional) OCPP 1.6
Maximum installation height	+2000 m above sea level
Physical properties
Housing	ABS+PC
Packing size(WxHxD)	550×370×270 mm
Gross weight	9.7kg
Net weight	8.6 kg
Mounting	Wall or pole
Standard colors	Misty Black

Note:

NECS charging stations can charge at 48 A; however, actual charging capacity is dependent on local environmental conditions and internal temperature build up.
Copyright NECS^® and the NECS logo are registered trademarks. All rights reserved. NECS has compiled this document to the best of its knowledge but does not warrant that all information provided is error-free; NECS does not accept liability in that respect.All specifications are approximates only. The limited warranty conditions are stated in the applicable NECS general terms and conditions.
